Home/Konnectal/Coiled Cables

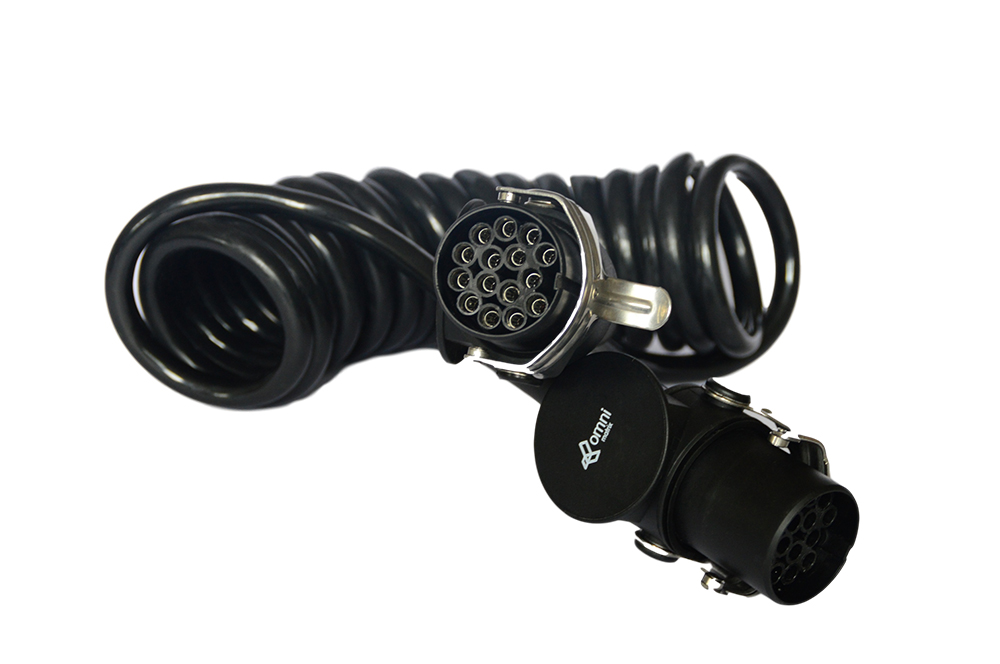

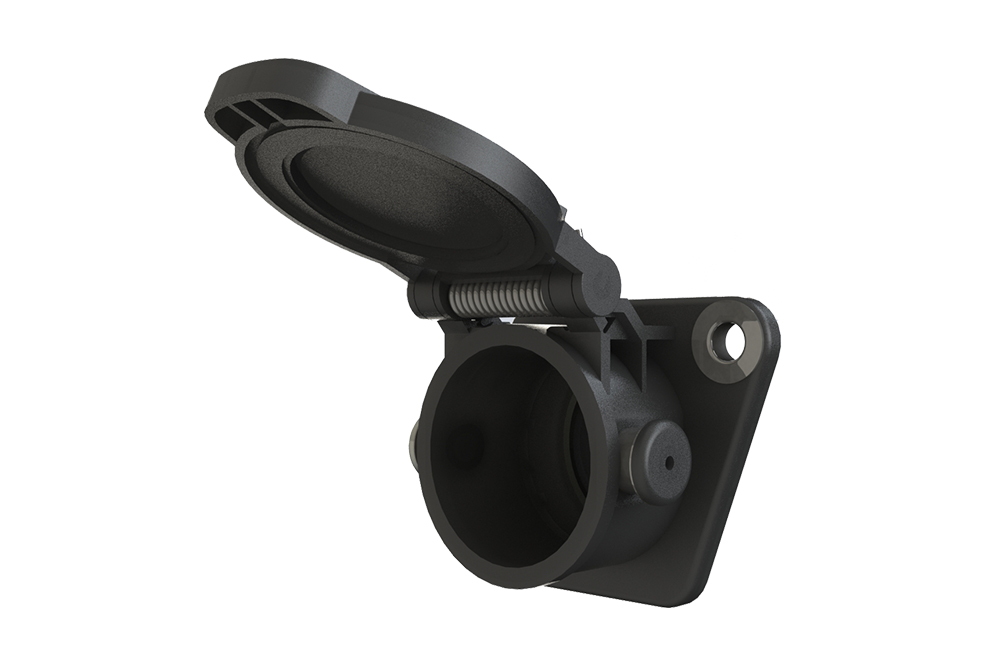

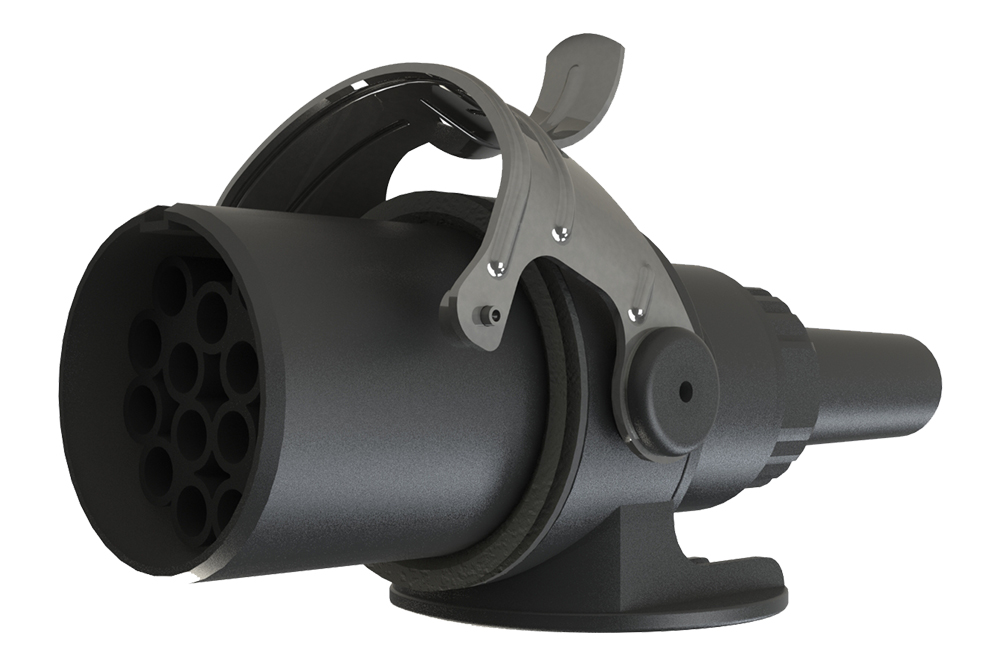

13P/24V ADR

Request for Callback

Technical Specifications

Standard

ISO 12098
ISO 4091
ISO 6722

Features

Exceptional recoil Memory.
Fully compliant with ADR regulations
Data lines twisted separately for efficient data transfer
Plug design to withstand pull out force
Superior working life.
Improved terminal design for long life.

Materials

Sheath material with excellent resistance to general chemicals and greases.
Durable and reliable.

Colour

Black cable sheath with colour coded ISO connectors

Application

13 P coil for trucks and trailers.

Economy

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	10 x 1.0, 3 x 1.5	24 V	ISO 12098
3.5	10 x 1.0, 3 x 1.5	24 V	ISO 12098
4.0	10 x 1.0, 3 x 1.5	24 V	ISO 12098

Pin Diagram

13 Pin ISO 12098

Pin	Description	Pin	Description	Diagram
	Left Hand Indicator		Reversing Light
	Right Hand Indicator		Power Supply
	Rear Fog Light		Worn Brake Lining Sensor
	Earth		Pressure Sensor For Brakes
	Left Hand Rear Position		Axle Lifting Device
	Right Hand Rear Position		Earth For Contacts 14&15
	Stop Lights
