ADR Cables & Wires

Request for Callback

Technical Specifications

Standard

TUV Approved for A.D.R. Applications
All cables are printed with TUV type-test approval mark

Features

Specially developed & approved durable sheath.
Cores insulated to minimum of ISO 6722
Excellent short-term dielectric strength

Materials

Special sheathing material ensures resistance to Diesel, Kerosene, Dilute Acids & Alkalis

Colour

Black cable sheath with white print

Application

Cables & Wires for trucks & trailer wiring systems

Specifications

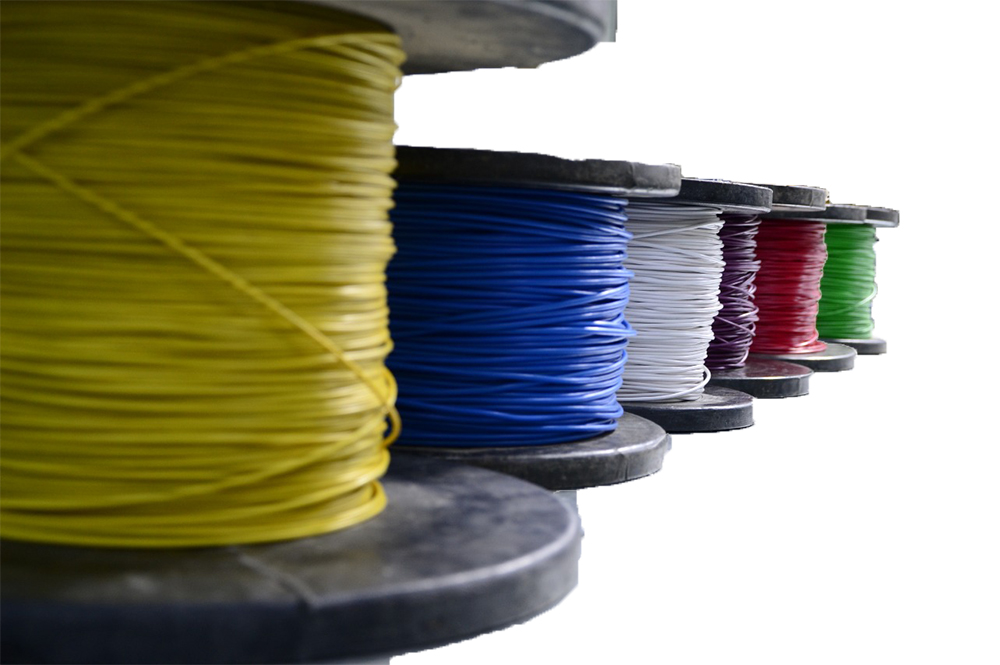

Wire Cross Section	Temperature Class	Colour Coding
1.0	A
1.25	A
1.5	A
2.0	A
2.5	A
3.0	A
4.0	A

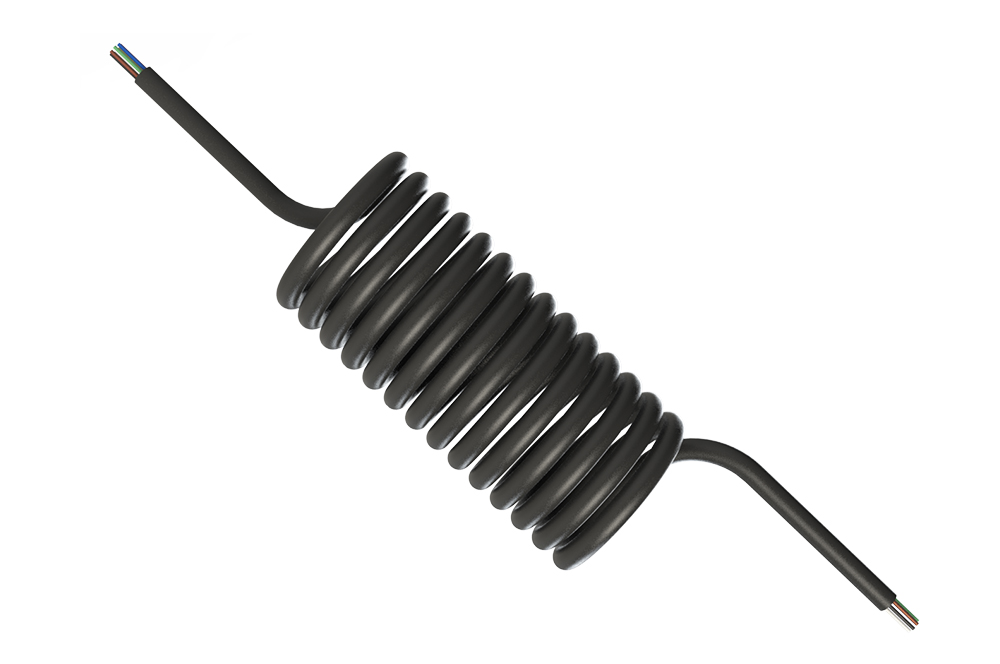

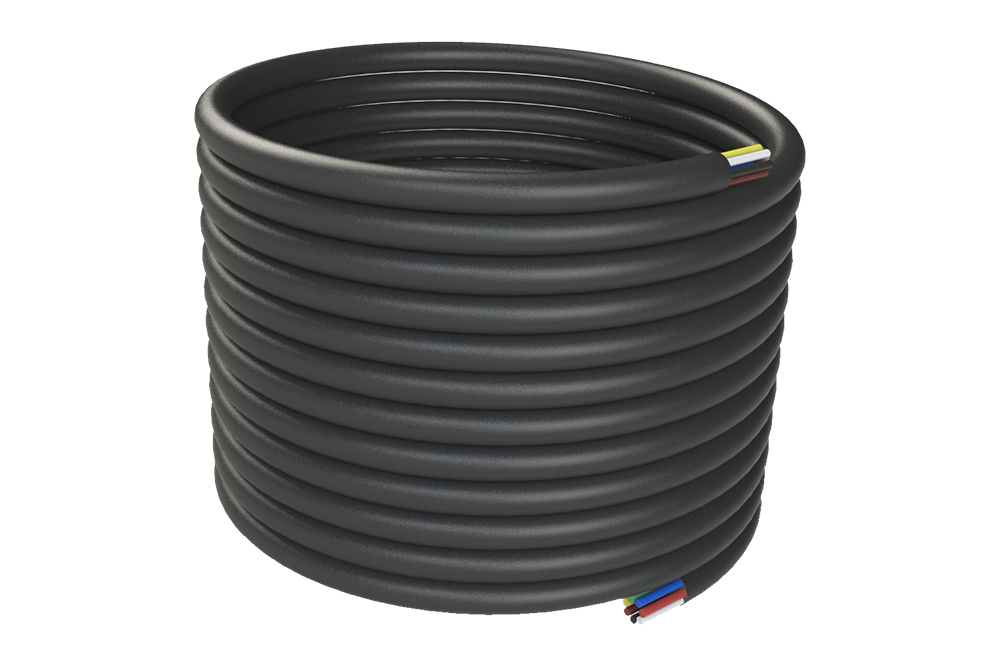

Cables

No of cores	Standard	Wire Cross Section	Temperature Class
7	ISO 1185	1.5 x 6 + 2.5 x 1	A
7	ISO 1185	1.0 x 6 + 1.5 x 1	A
7	ISO 3731	1.5 x 4 + 2.5 x 3	A
7	ISO 3731	1.0 x 4 + 1.5 x 3	A

Our range of ADR approved cables

No of cores	Standard	Wire Cross Section	Temperature Class
7	ISO 7638	1.5 x 3 + 4.0 x 2 + 1.5 x 2	A
7	ISO 7638	1.5 x 3 + 4.0 x 2 + 1.0 x 2	A
5	ISO 7638	1.5 x 3 + 4.0 x 2	A
5	ISO 7638	1.5 x 3 + 4.0 x 2	A
15	ISO 12098	1.5 x 12 + 2.5 x 3	A
15	ISO 12098	1.5 x 12 + 1.5 x 3	A
