ISO 1724/12V

Request for Callback

Technical Specifications

Standard

ISO 1724
ISO 6722

Features

Exceptional recoil Memory.
Ergonomic design of plug for ease of installation
Plug design to withstand pull out force
Superior working life.
Improved terminal design for long life.

Materials

Sheath material with excellent resistance to general chemicals and greases.
Durable and reliable.

Colour

Black cable sheath with colour coded ISO connectors

Application

Normal and Supplementary electrical connector cables for commercial vehicles / towing vehicles

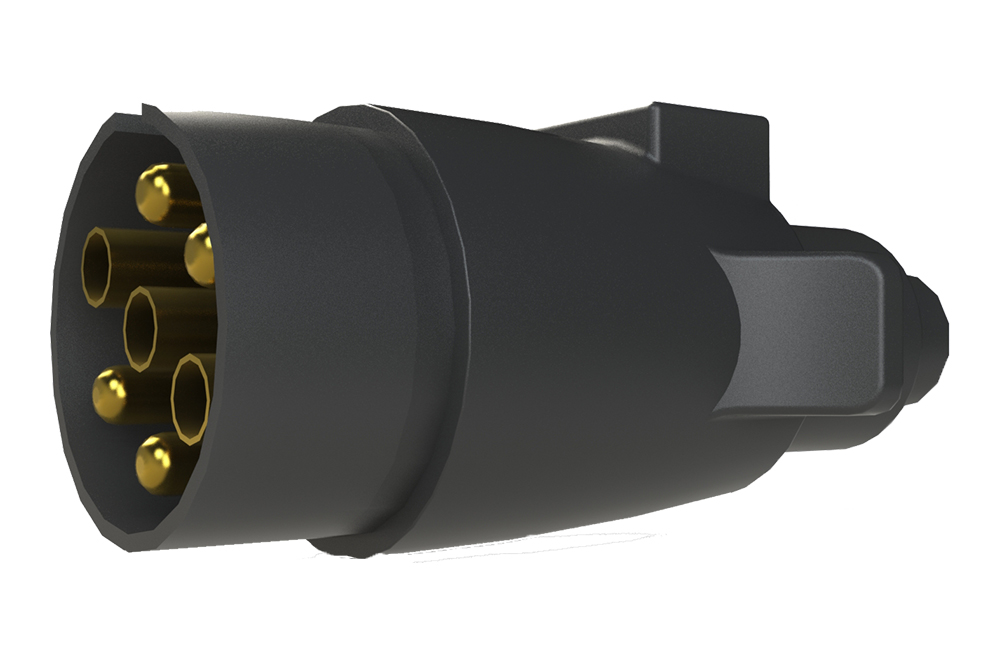

Plug Variants

Metal plug
Plastic plug

Economy

Max Extended Length (m)	Cable Specification (mm²)	Voltage	Standard
3.0	6 x 1.0, 1 x 1.5	12 V	ISO 1724
3.5	6 x 1.0, 1 x 1.5	12 V	ISO 1724
4.0	6 x 1.0, 1 x 1.5	12 V	ISO 1724

Pin Diagram

Pin	Description	Diagram
	Earth
	Left Hand Rear Position
	Left Hand Indicator
	Stop Lights
	Right Hand Indicator
	Right Hand Rear Position
	Breaking Control
